Development and applications of a high temperature nano-/micro mechanics device with a novel temperature measurement approach
V. Arigela and C. Kirchlechner
A novel design with independent tip and sample heating is developed to characterize materials at high temperatures. This design is realized by modifying a displacement controlled room temperature micro straining rig with addition of two miniature hot stages.
The stages are heated to 600°C with two independent 50W diode laser systems. The whole setup is placed inside a custom-made steel environmental chamber, capable of attaining a vacuum of 10-6 mbar. An inverted optical microscope placed at the top of the chamber is used as a visual aid to facilitate the experiments.
The setup is currently being used to characterize Laves phases and tensile thin films of pure Cu and Cu-X (X = Ag, Zr, …) binary alloys. In addition, the in situ study of temperature and environmental effects on interfaces and the embrittlement of materials is envisioned.
![Fig. 1 The straining rig with hot stages housed in an environmental chamber (Figure submitted to “The review of scientific instruments”)](/3896785/original-1550143765.jpg?t=eyJ3aWR0aCI6MjQ2LCJvYmpfaWQiOjM4OTY3ODV9--9f0fd95fead42f7c7a49bd32eeb2b787521b9031)

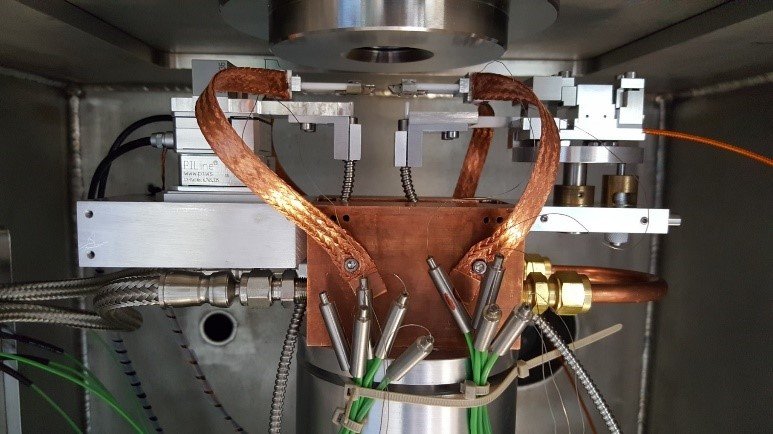

Fig. 1 The straining rig with hot stages housed in an environmental chamber (Figure submitted to “The review of scientific instruments”)
![Fig. 2 Stress-displacement curves measured with the novel setup, showing the variation of strength in Cu thin films at different temperatures (Figure submitted to “The review of scientific instruments”)](/3896846/original-1550143765.jpg?t=eyJ3aWR0aCI6MjQ2LCJvYmpfaWQiOjM4OTY4NDZ9--3133cbadbd74980891ec96826198886d63aaffc1)

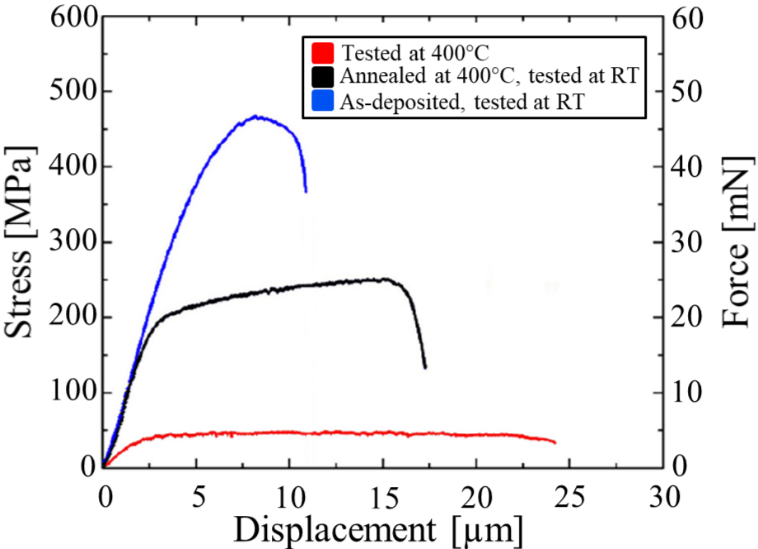

Fig. 2 Stress-displacement curves measured with the novel setup, showing the variation of strength in Cu thin films at different temperatures (Figure submitted to “The review of scientific instruments”)
