Within the EU project „ADVANCE - Sophisticated experiments and optimisation to advance an existing CALPHAD database for next generation TiAl alloys”, MPIE collaborated with Thermocalc-Software AB, Stockholm, Montanuniversität Leoben and Helmholtz-Zentrum Hereon, Geesthacht. At MPIE the focus lay on the production and heat treatments of model alloys and their analysis through metallography, X-ray diffraction, electron probe microanalysis and differential thermal analysis. Colleagues in Leoben performed transmission electron microscopy and at Helmholtz-Zentrum Hereon in situ synchrotron X-ray diffraction was carried out. All obtained data were optimised at the company Thermocalc and checked for consistency before they were implemented into the database.
Alloys based on the intermetallic phase γ-TiAl constitute a new class of materials. They have high specific strength and are therefore specifically suited for applications where the weight of moving parts has to be considered, e.g. compressor blades in aero engines or turbo chargers for vehicles. Compared to established Ni- and Co-base superalloys, γ-TiAl alloys are lighter and therefore more energy-efficient.
Today’s alloy developments crucially depend on data-based CALPHAD programs. CALPHAD is an acronym for calculation of phase diagrams. The databases contain specific thermodynamic values for phase equilibria and phase transformations, and data of phase compositions in dependence on temperature and composition of an alloy. The databases allow to calculate which phases are stable at certain temperatures, their volume fractions and compositions within regions, where no experimental results are available. This enables prediction of the microstructures and, from this, conclusions about expected mechanical properties. Thereby, employment of these databases enables a time-efficient development of novel materials.
Within the project, thermodynamic data for the alloy systems Ti-Al-X (X = Nb, Mo, W, Zr, O, B, Si, Zr) and Ti-Al-Nb-Y (Y = W, Mo) were obtained and the results were published in a series of publications [1-19] including two doctoral theses [3, 4]. Work on individual systems started by critical evaluation of the existing literature [6, 10, 14-16]. From these assessments, temperature-composition ranges needing further study were identified.
One of the key systems for the development of novel TiAl-based alloys for application in aero engines is Ti-Al-Nb. Therefore phase equilibria [4, 7, 8, 18], transformation kinetics [4, 11, 12] and the influence of oxygen on phase equilibria at high temperature [4, 17] in this system were investigated in detail. In-depth studies on phase equilibria were also performed on the related ternary systems with Mo [2, 4] and W [1, 4]. Silicon can improve the oxidation resistance of TiAl-based alloys and fine silicide precipitates enhance the creep resistance at high temperatures. Because strength crucially depends on the volume fraction of the silicide, phase equilibria between the Ti-Al phases and Ti5Si3 were determined [3, 5, 13]. Zirconium is of interest in recent alloy developments because of substantial solid strengthening in TiAl. Re-determination of the phase equilibria [3, 9, 19] showed that they are actually quite different from previously established ones because those included phases, which are stabilised by impurities.

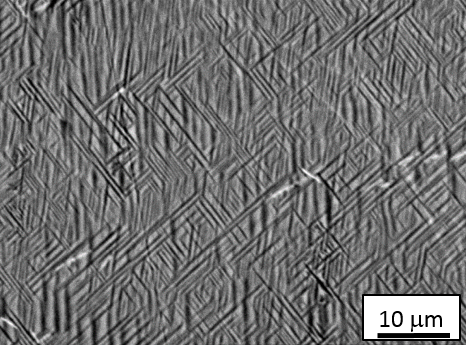

Example of an aligned microstructure of a Ti-Al-Nb alloy.
Distl, B.: Phase equilibria and phase transformations of Ti–Al–X (X=Nb, Mo, W) alloys for high-temperature structural applications between 700 and 1300 °C. Dissertation, Ruhr-Universität Bochum, Fakultät für Maschinenbau, Germany (2022)
Distl, B.; Hauschildt, K.; Pyczak, F.; Stein, F.: Phase Equilibria in the Ti-Rich Part of the Ti–Al–Nb System-Part II: High-Temperature Phase Equilibria Between 1000 and 1300 °C. Journal of Phase Equilibra and Diffusion 43, pp. 554 - 575 (2022)
Distl, B.; Hauschildt, K.; Rashkova, B.; Pyczak, F.; Stein, F.: Phase Equilibria in the Ti-Rich Part of the Ti–Al–Nb System-Part I: Low-Temperature Phase Equilibria Between 700 and 900 °C. Journal of Phase Equilibra and Diffusion 43, pp. 355 - 381 (2022)
Kahrobaee, Z.; Rashkova, B.; Hauschildt, K.; Palm, M.: Experimental Investigation of Phase Equilibria in the Ti—Al—Zr System at 1000–1300 °C. Crystals 12 (9), 1184 (2022)
Kahrobaee, Z.; Palm, M.: Determination of phase equilibria in the Ti–Al–Si system at 800–1200 °C. In: Proceedings Intermetallics 2021, pp. 78 - 79. Intermetallics 2021, Bad Staffelstein, Germany, October 04, 2021 - October 08, 2021. (2021)
Distl, B.; Dehm, G.; Stein, F.: Effect of Oxygen on High‐temperature Phase Equilibria in Ternary Ti‐Al‐Nb Alloys. Zeitschrift für anorganische und allgemeine Chemie 646 (14), pp. 1151 - 1156 (2020)
Distl, B.; Palm, M.; Stein, F.; Rackel, M. W.; Hauschildt, K.; Pyczak, F.: Phase equilibria investigations in the ternary Ti–Al–Nb system at elevated temperatures. Intermetallics 2019, Bad Staffelstein, Germany (2019)
Kahrobaee, Z.; Stein, F.; Palm, M.: Experimental evaluation of the isothermal section of the Ti–Al–Zr ternary system at 1273 K. In: Proceedings Intermetallics, pp. 174 - 175. Intermetallics 2019, Bad Staffelstein, Germany, September 30, 2019 - October 04, 2019. (2019)
In this project, we employ a metastability-engineering strategy to design bulk high-entropy alloys (HEAs) with multiple compositionally equivalent high-entropy phases.
Solitonic excitations with topological properties in charge density waves may be used as information carriers in novel types of information processing.
About 90% of all mechanical service failures are caused by fatigue. Avoiding fatigue failure requires addressing the wide knowledge gap regarding the micromechanical processes governing damage under cyclic loading, which may be fundamentally different from that under static loading. This is particularly true for deformation-induced martensitic…
In this project we conduct together with Dr. Sandlöbes at RWTH Aachen and the department of Prof. Neugebauer ab initio calculations for designing new Mg – Li alloys. Ab initio calculations can accurately predict basic structural, mechanical, and functional properties using only the atomic composition as a basis.
Low dimensional electronic systems, featuring charge density waves and collective excitations, are highly interesting from a fundamental point of view. These systems support novel types of interfaces, such as phase boundaries between metals and charge density waves.
Oxides find broad applications as catalysts or in electronic components, however are generally brittle materials where dislocations are difficult to activate in the covalent rigid lattice. Here, the link between plasticity and fracture is critical for wide-scale application of functional oxide materials.
In this project we study - together with the department of Prof. Neugebauer and Dr. Sandlöbes at RWTH Aachen - the underlying mechanisms that are responsible for the improved room-temperature ductility in Mg–Y alloys compared to pure Mg.
The wide tunability of the fundamental electronic bandgap by size control is a key attribute of semiconductor nanocrystals, enabling applications spanning from biomedical imaging to optoelectronic devices. At finite temperature, exciton-phonon interactions are shown to exhibit a strong impact on this fundamental property.
