The local accumulation of fatigue damage is not understood for micron sized materials possessing grain and phase boundaries. This is primarily due to the lack of a characterization technique measuring the decisive material parameters (e.g. local strains, dislocation densities, grain boundary character, etc.) non-destructively with high spatial resolution (<1μm).

Within this project, a new microscope, the so-called ‘Differential Aperture X-ray Microscopy’ (DAXM), combined with a Straining Device is developed. The project is funded by a joint ANR-DFG (French and German science foundation) call.

This combination allows to deform micron sized pure copper bicrystal and measure locally their microstructure evolution in 3D simultaneously. Figure 1 shows a scanning electron microscope (SEM) image together with a 3D reconstruction of the grain orientation. The voxel size of this reconstruction is 1µm³.

The instrument is shown in Fig. 2.

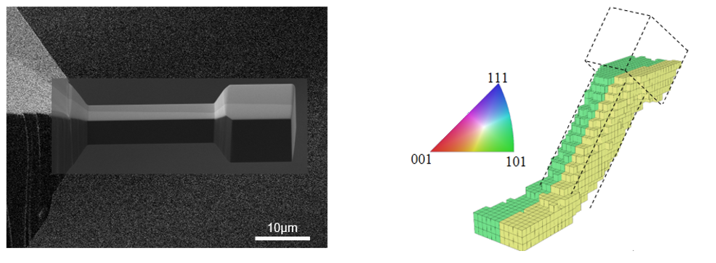

Figure 1: SEM image and 3D reconstruction of an undeformed copper bicrystal cantilever (5x5x25µm³).

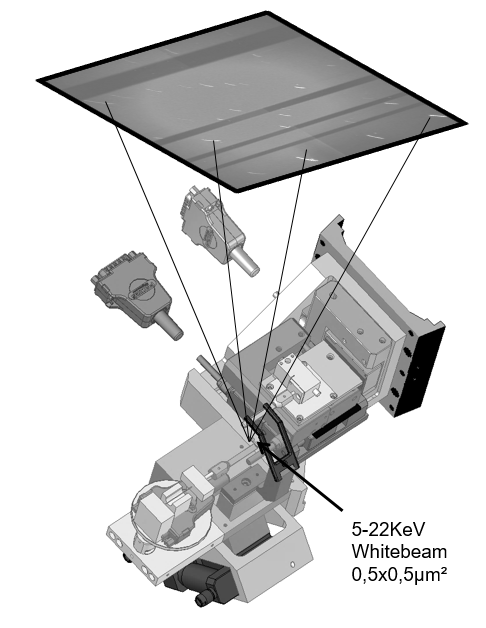

Figure 2: Numerical model of the DAX/Straining device developed at BM32.
