Molecular engineering of adhesives

1. Scaling from single molecule to macroscopic adhesion at polymer/metal interfaces

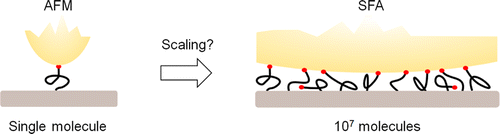

Understanding the evolution of macroscopic adhesion based on fundamental molecular interactions is crucial to designing strong and smart polymer/metal interfaces that play an important role in many industrial and biomedical applications. Here we show how macroscopic adhesion can be predicted on the basis of single molecular interactions. In particular, we carry out dynamic single molecule-force spectroscopy (SM-AFM) in the framework of Bell-Evans' theory to gain information about the energy barrier between the bound and unbound states of an amine/gold junction. Furthermore, we use Jarzynski's equality to obtain the equilibrium ground-state energy difference of the amine/gold bond from these nonequilibrium force measurements. In addition, we perform surface forces apparatus (SFA) experiments to measure macroscopic adhesion forces at contacts where approximately 10(7) amine/gold bonds are formed simultaneously. The SFA approach provides an amine/gold interaction energy (normalized by the number of interacting molecules) of (36 ± 1)kBT, which is in excellent agreement with the interaction free energy of (35 ± 3)kBT calculated using Jarzynski's equality and single-molecule AFM experiments. Our results validate Jarzynski's equality for the field of polymer/metal interactions by measuring both sides of the equation. Furthermore, the comparison of SFA and AFM shows how macroscopic interaction energies can be predicted on the basis of single molecular interactions, providing a new strategy to potentially predict adhesive properties of novel glues or coatings as well as bio- and wet adhesion.

Zoom Image
1.
Thomas Utzig, Sangeetha Raman, and Markus Valtiner, "Scaling from Single Molecule to Macroscopic Adhesion at Polymer/Metal Interfaces," Langmuir 31 (9), 2722-2729 (2015).

2. Deciphering the scaling of single-molecule interactions using Jarzynski’s equality

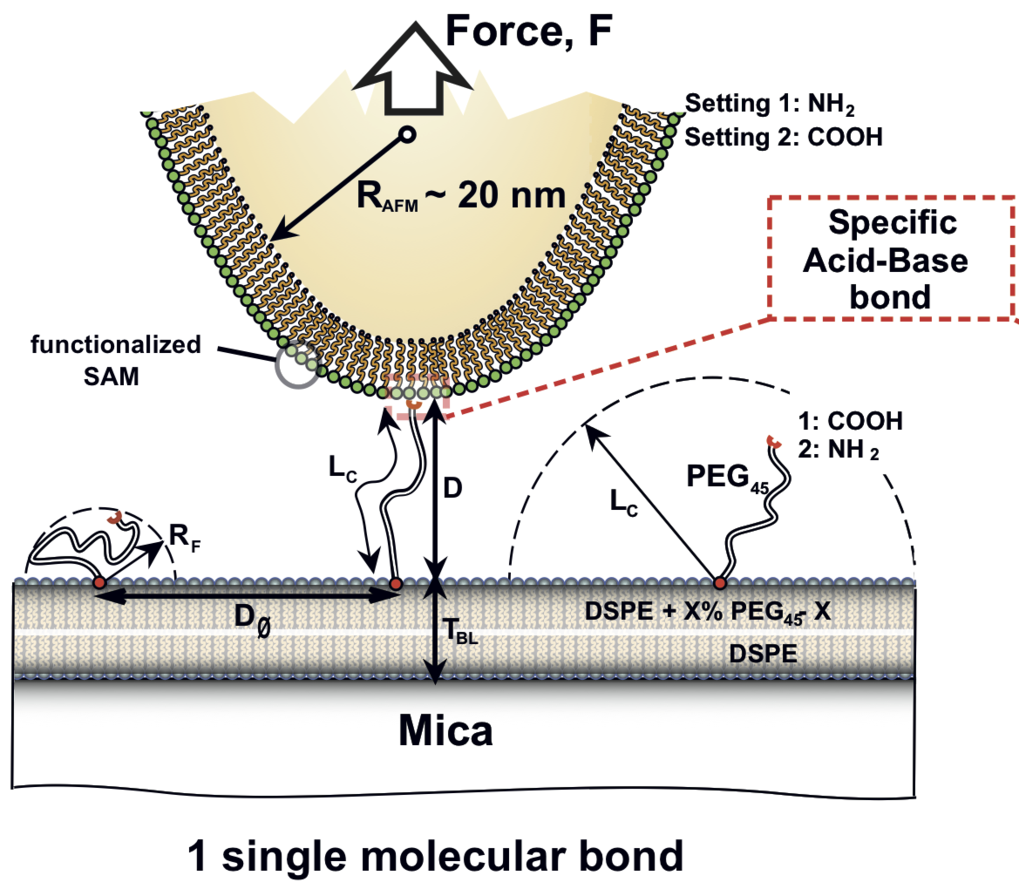

Unravelling the complexity of the macroscopic world relies on understanding the scaling of single-molecule interactions towards integral macroscopic interactions. Here, we demonstrate the scaling of single acid–amine interactions through a synergistic experimental approach combining macroscopic surface forces apparatus experiments and single-molecule force spectroscopy. This experimental framework is ideal for testing the well-renowned Jarzynski’s equality, which relates work performed under non-equilibrium conditions with equilibrium free energy. Macroscopic equilibrium measurements scale linearly with the number density of interfacial bonds, providing acid–amine interaction energies of 10.9±0.2 kT. Irrespective of how far from equilibrium single-molecule experiments are performed, the Jarzynski’s free energy converges to 11±1 kT. Our results validate the applicability of Jarzynski’s equality to unravel the scaling of non-equilibrium single-molecule experiments to scenarios where large numbers of molecules interacts simultaneously in equilibrium. The developed scaling strategy predicts large-scale properties such as adhesion or cell–cell interactions on the basis of single-molecule measurements.

Zoom Image
2.
Sangeetha Raman, Thomas Utzig, Theodoros Baimpos, Buddha Ratna Shrestha, and Markus Valtiner, "Deciphering the scaling of single-molecule interactions using Jarzynski's equality," Nature Communications 5, 5539 (2014).
