CD Laboratory for Diffusion and Segregation during Production of High Strength Steel (2008-2014) (closed)

The main focus of the Christian Doppler Laboratory for Diffusion and Segregation during Production of High-Strength Steel Sheet is on fundamental diffusion and segregation problems encountered during the different production steps of high strength steel sheet.

The technical motivation behind this is that the development of high strength steels with their characteristic alloying element composition leads to new challenges for the production and processing of steel sheets in order to meet the product requirements. The focus here is on selective grain boundary oxidation during hot rolling and its consequences for pickling, and on hydrogen detection and its uptake kinetics in different process steps. The related questions are of significant scientific interest and the related research of considerable experimental challenge.

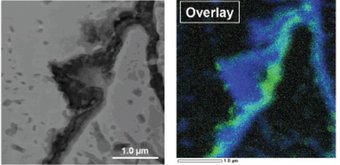

Layered structure of a grain boundary oxide: EDX elemental maps of a FIB-prepared cross-sectional TEM lamella of ternary Fe−3Al−0.8Cr model alloy annealed at 700 °C, in 2/2.5%H2/9000 ppm H2O, for 2 hours (green Cr, purple Al). — Layered structure of a grain boundary oxide: EDX elemental maps of a FIB-prepared cross-sectional TEM lamella of ternary Fe−3Al−0.8Cr model alloy annealed at 700 °C, in 2/2.5%H₂/9000 ppm H₂O, for 2 hours (green Cr, purple Al).

© Max-Planck-Institut für Eisenforschung GmbH

Layered structure of a grain boundary oxide: EDX elemental maps of a FIB-prepared cross-sectional TEM lamella of ternary Fe−3Al−0.8Cr model alloy annealed at 700 °C, in 2/2.5%H₂/9000 ppm H₂O, for 2 hours (green Cr, purple Al).

© Max-Planck-Institut für Eisenforschung GmbH

Selective Enrichment (SE) Module

Within this module the activities focused mainly on two approaches: fundamental investigation of grain boundary oxidation based on dedicated model alloys (Fig) and developing a new simulation tool for describing grain-boundary oxidation on a theoretical level [1-3]. One important result found within the reporting period was that it is mainly the interaction between some of the key alloying elements in high strength steels that is responsible for significantly enhanced internal oxidation. This is at the focus of current research and will be investigated experimentally and theoretically.

Pickling (P) Module

This module deals with pickling after hot rolling and is carried out mainly by Prof. Dr. Herbert Danninger at the Faculty of Technical Chemistry, TU Wien.

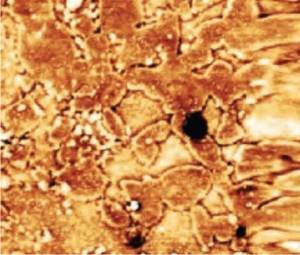

Detecting hydrogen on a 50×50 µm² surface area of a H charged austenitic steel after evaporation of a 100 nm Pd film. Potential map of this area obtained after 28 h in the Kelvin probe mode. The dark spots indicate sites with especially high hydrogen concentrations (traps).

© Max-Planck-Institut für Eisenforschung GmbH

Detecting hydrogen on a 50×50 µm² surface area of a H charged austenitic steel after evaporation of a 100 nm Pd film. Potential map of this area obtained after 28 h in the Kelvin probe mode. The dark spots indicate sites with especially high hydrogen concentrations (traps).

© Max-Planck-Institut für Eisenforschung GmbH

Hydrogen (H) Module

The hydrogen uptake of the material is a significant problem especially for high strength steels, as small amounts of hydrogen in the range of ppm can cause retarded brittle fracture. Uptake during several wet processing steps as well as corrosion and recrystallization annealing is investigated. For the latter an important question is information about the distribution of oxides at the different stages of the annealing [4], which is now also investigated by ambient ESCA. Here a main focus in the reporting period was the successful development of a novel method for spatially resolved highly sensitive hydrogen detection [5,6].

A summary of the most important result will be given soon.

Michael Auinger, R. Naraparaju, Hans Jürgen Christ, and Michael Rohwerder, "Modelling high temperature oxidation in iron-chromium systems: Combined kinetic and thermodynamic calculation of the long-term behaviour and experimental verification," Oxidation of Metals 76 (3-4), 247-258 (2011).

MPG.PuRe

DOI

Michael Auinger, Sergiy Borodin, Srinivasan Swaminathan, and Michael Rohwerder, "Thermodynamic Stability and Reaction Sequence for High Temperature Oxidation Processes in Steels," Materials Science Forum 696, 76-81 (2011).

MPG.PuRe

DOI

Michael Auinger and Michael Rohwerder, "Coupling Diffusion and Thermodynamics - Exemplified for the gas nitriding of ironchromium alloys," HTM - Journal of Heat Treatment and Materials 66 (2), 100-102 (2011).

MPG.PuRe

DOI

Srinivasan Swaminathan and Michael Rohwerder, "Segregation and selective surface oxidation at the intermediate steps of recrystallization annealing", in Defect and Diffusion Forum, (Trans Tech, Aedermannsdorf, Switzerland, 2011), Vol. 309-310, pp. 203-208.

MPG.PuRe

DOI

Stefan Evers and Michael Rohwerder, "The hydrogen electrode in the “dry”: A Kelvin probe approach to measuring hydrogen in metals," Electrochemistry Communications 24, 85-88 (2012).

MPG.PuRe

DOI

Ceylan Senöz, Stefan Evers, Martin Stratmann, and Michael Rohwerder, "Scanning Kelvin Probe as a highly sensitive tool for detecting hydrogen permeation with high local resolution," Electrochemistry Communucations 13 (12), 1542-1545 (2011).

MPG.PuRe

DOI
