Understanding the relationship between misorientation and impurity segregation at the CIGS grain boundaries

Polycrystalline thin-film solar cells based on the compound semiconductors CuInSe2 (CIS) and Cu(In,Ga)Se2 (CIGS) as absorber materials are important for photovoltaic applications because of their high energy conversion efficiency, long-term stable performance, and low-cost production.

Polycrystalline thin-film solar cells based on the compound semiconductors CuInSe2 (CIS) and Cu(In,Ga)Se2 (CIGS) as absorber materials are important for photovoltaic applications because of their high energy conversion efficiency, long-term stable performance, and low-cost production. One of the major factors controlling the cell efficiency is the diffusion of impurities from the soda-lime glass substrate into the absorber layer. Previous studies [14-16] had shown that these impurities are mainly redistributed at the grain boundaries.

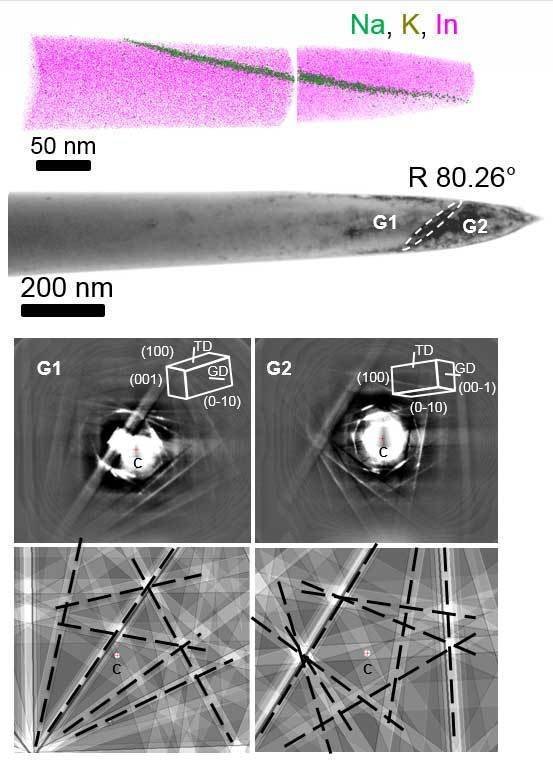

This project deals with the development of a novel approach of preparing site-specific atom-probe specimens using combined focused-ion beam, electron backscatter diffraction, and transmission electron microscopy. This method allows selected grain boundaries with a known location in CIGS thin-films to be studied by APT. Indeed, the aim of this project is to understand the relationship between the misorientation and impurity segregation at the grain boundaries in the CIGS absorber layer.
