Mechanical and chemical characterization of grain boundaries
Grain boundary chemistry and mechanics
![Investigation of grain boundary corrosion of a 304 austenitic stainless steel, immersed into HF-H202 solution. The characterization is done by pseudo-3D EBSD. Two random large angle grain boundaries corrode very different because one has low-indexed boundary planes and the other a more random ones.](/3743820/original-1518437907.jpg?t=eyJ3aWR0aCI6MjQ2LCJvYmpfaWQiOjM3NDM4MjB9--3b7c43382e8c2b9a1ab43bd226c62ff251ac578e)

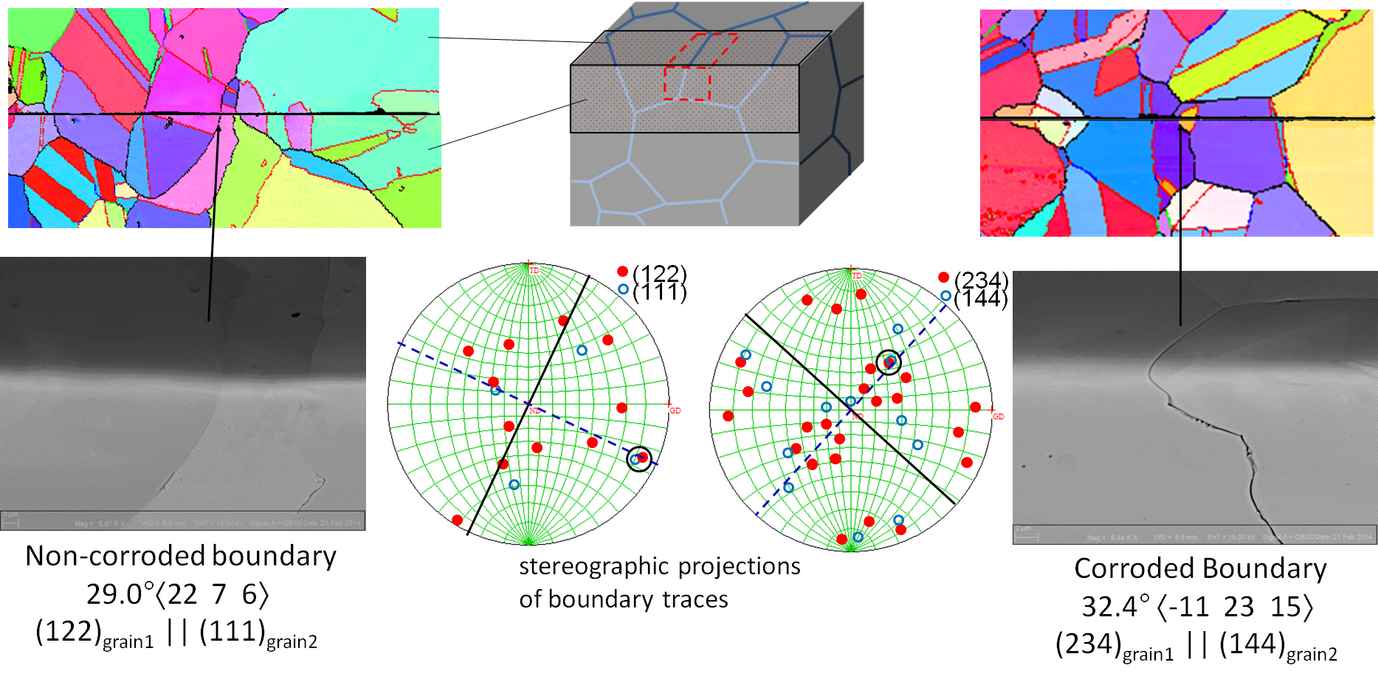

Investigation of grain boundary corrosion of a 304 austenitic stainless steel, immersed into HF-H202 solution. The characterization is done by pseudo-3D EBSD. Two random large angle grain boundaries corrode very different because one has low-indexed boundary planes and the other a more random ones.
© Max-Planck-Institut für Eisenforschung GmbH
